Media Solution - SmartZone Matrix Switcher
Too many TVs and media sources in premise?
Imagine the complicated cabling and low quality images when you have 4 TVs and yet one Astro, and you wish to share the Astro source to all your current TVs. Or in office, you have CCTV, info to share on TV and other presentation source like Apple TV (Air Play) etc, it is a big headache in managing all sources and share with all TVs with messy cabling works.
How about changing channel? Like Astro? You will need to point your remote to your decoder, just to change a channel when u watch movie from your room, while your decoder located the other side.
With SmartZone Matrix Switcher device, manage your media in the easiest way and control using the most convenient smart interface.
How it works?
Put all your media source in your server rack (CCTV, APPLE TV, ASTRO, MOVIE BOX etc), connect to Matrix Switcher, and then from Matrix Switcher, we just need to connect a CAT 6 cable reaching to your TV. Now, you can enjoy high quality movie without messy cabling and decoders below the TV!

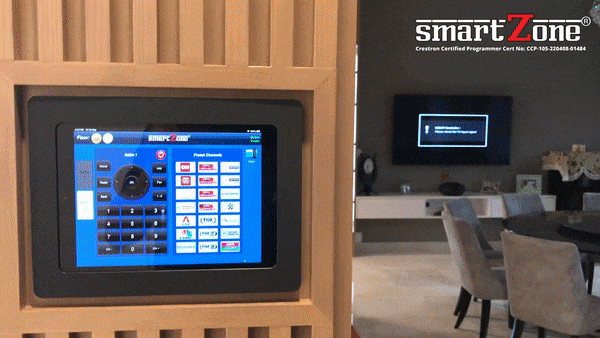

Simply drag and drop the icon to the TV you wish to see, TV will turn on automatically and switch to the source you requested.
No more messy decoders, no more messy cabling, share one source to all TVs in house!
Change channel from iPad or SmartPhone!
No more messy decoders, interior design more futuristic, clean and neat.
Photo 1: TV hide behind black glass mirror
Photo 2: TV with TV lift hide inside cabinet, rise up when activated.
SMARTZONE 4H4CVL - 4×4 HDMI over CAT5e/6/7 Matrix
Click below Image to enlarge
Click below Schematic Diagram to enlarge
OVER CAT5E/6/7 RECEIVER - CLICK BELOW IMAGE TO ENLARGE
The HDBaseT™ 4 by 4 HDMI Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 1080p Full HD and 1920x1200@60Hz) and multi-channel digital audio from four high definition sources to four outputs over a single CAT5e/6/7 cable (up to 60m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source. It also has the added benefit of beibcontrol via IR, RS-232, Telnet or Web GUI.
Click below Schematic Diagram to enlarge
SMARTZONE 8H8CVL - 8×8 HDMI OVER CAT5E/6/7 MATRIX
CLICK BELOW IMAGE TO ENLARGE
OVER CAT5E/6/7 RECEIVER - CLICK BELOW IMAGE TO ENLARGE
The HDBaseT™ Lite 8 by 8 HDMI Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 1080p Full HD and 1920x1200@60Hz), multi-channel digital audio and control via IR, RS-232, Telnet or Web GUI from eight high definition sources to eight outputs over a single CAT5e/6/7 cable (up to 60m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source.
Click below Schematic Diagram to enlarge
SMARTZONE CMSI-424L - 4×4 HDMI over CAT5e/6/7 Matrix with 2 Simultaneous HDMI Outputs
CLICK BELOW IMAGE TO ENLARGE
OVER CAT5E/6/7 RECEIVER - CLICK BELOW IMAGE TO ENLARGE
The 4 by 4 HDMI Matrix over CAT5e/6/7 with two additional simultaneous HDMI outputs supports the transmission of video (resolutions up to 1080p Full HD and 1920x1200@60Hz), multichannel digital audio and control via IR, RS-232 or Web GUI/Telnet IP from four high definition sources to four HDBaseT outputs over a single CAT5e/6/7 cable (up to 60m) for each output. Output A and C have additional mirrored HDMI outputs. It supports high resolution digital audio formats such as LPCM 7.1 CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3DTV and 3D source.
SMARTZONE PRO-UA8H8CVPL - 8×8 HDMI 4K over CAT5e/6/7 Matrix with 24V PoC and HDCP 2.2
CLICK BELOW IMAGE TO ENLARGE
Click below Schematic Diagram to enlarge
The 8 by 8 HDMI 4K2K Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 4K2K Full HD & HDCP 2.2), multi-channel digital audio and control via IR, RS-232, Telnet or Web GUI from eight high definition sources to eight outputs over a single CAT5e/6/7 cable (up to 60m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source. The Power over Cable (PoC) function can power compatible receivers, providing greater flexibility in installations.
